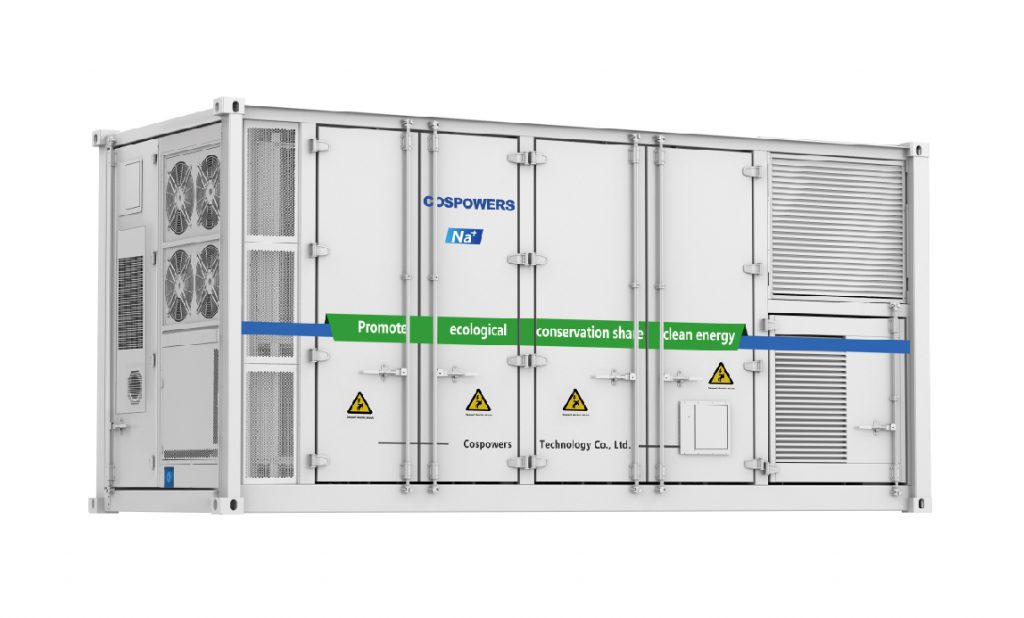

EnerGalactic-2432-Na
Temperature variation within the battery pack: less than 5°C
Triple-layer fire protection ensures exceptional safety
High energy density enables flexible layout and easy scalability
Modular prefabrication eliminates the need for on-site installation
Battery module
Parameters/Model | EnerGalactic-2432-Na |
|---|---|
Cell Capacity | 168Ah |
Battery Chemistry | NA |
Battery Pack | 1P52S |
ModuleVoltage | 150.8V |
Module Power | 25.33kWh |
IP Class | IP 67 |
Battery cluster
NOs.of Modules | 8pcs |
Cluster Nominal Voltage | 1206.4V |
Voltage Range | 624V~1414.4V |
Single Cluster Power | 202.67kWh |
Battery cabin
Nos.of Battery Clusters | 12pcs |
Battery system energy | 2432kWh |
Battery Cabin Dimension(W*D*H) | 6058*2438*2896mm |
Weight | ≤43t |
Cooling Method | Liquid cooling |
IP Class | IP54 |
Compliant with Standards
Cluster | IEC62619、UL1973、UL9540A、UN38.3 |
