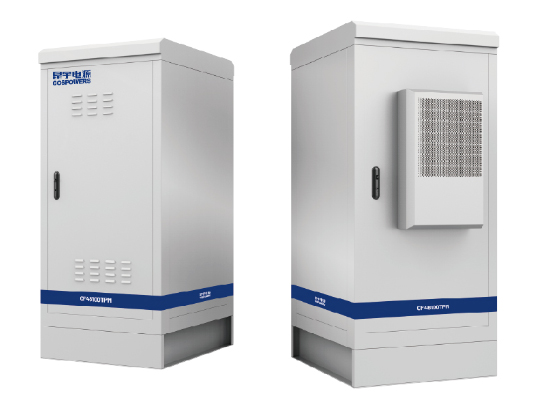

POWER SUPPLY SYSTEM CABINET
Solar energy input
Maximum DC power | 15000W |
|---|---|
Optimum operating voltage | 120Vdc |
Maximum Input Current | 200A |
MPPT voltage range | 60~150Vdc |
MPPT Number of traced paths | 5 |
AC Input
Rated input voltage | 220Vac |
|---|---|
Input Voltage Range | 85~300Vac |
Input Frequency | 50/60Hz |
Max input current limit | ≤55A (Single phase) |
Power factor | >99% |
Battery configuration
Battery voltage range | 43.2~56Vdc |
|---|---|
Rated battery voltage | 51.2Vdc |
Battery charge/discharge power | 5120W(charge) / 10240W(discharge) |
Max charge/discharge current | 100A(charge) / 200A(discharge |
Communication method | RS485 |
DC output (3 channels)
Output DC voltage range | 42~58Vdc |
|---|---|
Output DC voltage | 54.0Vdc |
Output DC current | 0~200A |
Output efficiency | ≥96% Pure electric mode, ≥95% Pure solar mode |
Inverter AC output (1 channel)
Output AC voltage | 220Vac±2% |
|---|---|
Output frequency | 50/60Hz±1 |
Max output power | 4500W |
Application environment
Operating temperature | -10~+50℃ |
|---|---|
Operating altitude | <2000m |
Storage temperature | -20~+60℃ |
Relative humidity | 5%~90%RH |
Noise | <30dB |
Mechanica appearance
Size | 750 * 750 * 1671.5 mm |
|---|---|
IP Class | IP43 |
Cooling Method | Temperature controlled heat dissipation |
Installation method | Install on ground |
Communication method | WIFI,RS458 |
